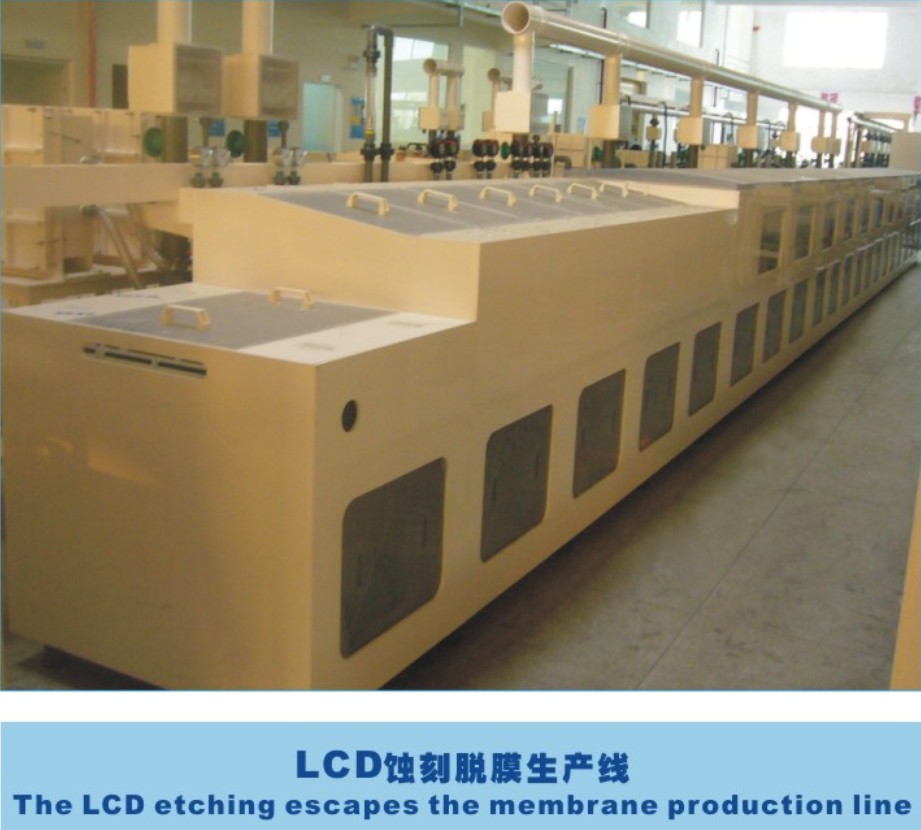

LCD etching and stripping machine is mainly application in the LCD glass treatment of etching and stripping after developing.

Load-->Liquid remove-->Spraying type etching1-->Spraying type etching2-->Spraying type etching3-->Liquid remove-->DI water spraying1-->DI water spraying2-->Natural DI water rinsing-->Drying-->Checking-->UV exposure-->Liquid remove-->Spraying stripping1 -->Brushing stripping-->Spraying stripping2-->Liquid remove-->DI water spraying1-->DI brushing rinsing-->DI water spraying2-->Liquid remove-->DI water spraying3-->DI water spraying4-->DI water spraying5-->Natural DI water rinsing-->Drying

1.Size of working piese: 550mm x 650mm

2.Thickness of working piece: 0.1-1.1mm

3.Conveyor speed:0.5-4meter per minute,adjustable

4.Production speed: Suggested 2-3meter per minute

5.Height of conveyor:900+/-20mm
